Technical data

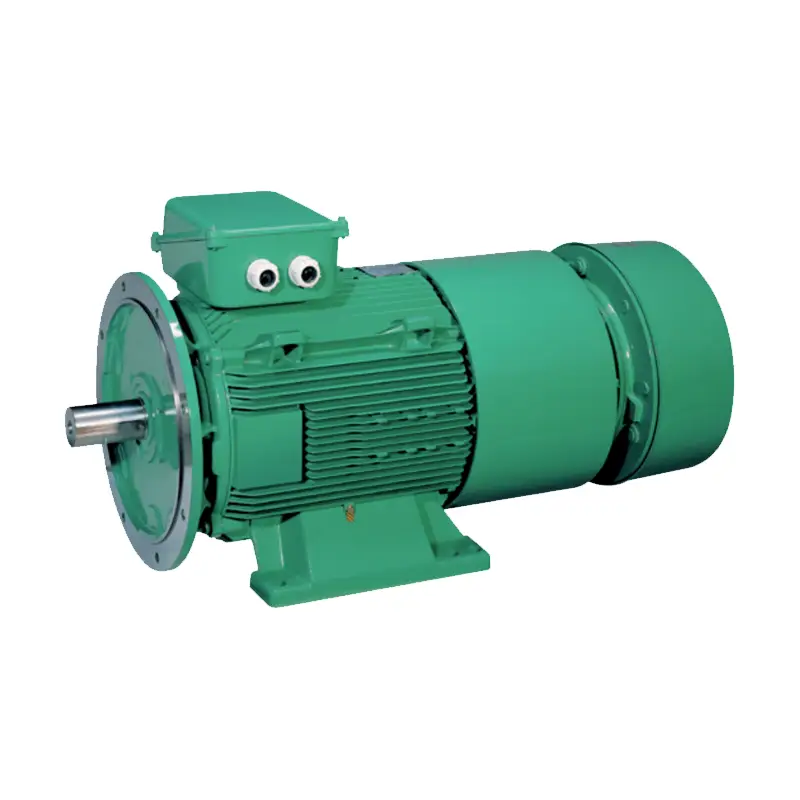

FCPL Lifting Patay DC brake
65 to 5000 Nm
Advantages
Low noise level.
Braking torque determined by the customer specification and totally reliable.
Brake coil coated with resin.
Available options: brake release by a lever, brake release indicator, lining wear indicator, second shaft end for crankshaft socket, adaptation of a tachogenerator, space heater.
| Size | 40 – 54 – 60 – 76 | |
| Motor type | LS – FLS – PLS – CPLS | |
| Ingress protection | IP | 44 – 55 – 56 |
| Voltage | V | 20 – 100 – 180 – 200 |
| Braking torque | N.m | 65 to 5000 |
| Technology | Power supply by half wave rectifier bridge or by doping device | |
| Duty | S1 or S3 | |
| Power | kW | 11 to 550 |
